LORENTZ PS600 C-SJ5-8 Submersible Pump System
LORENTZ PS600 C-SJ5-8 Submersible Pump System
Description

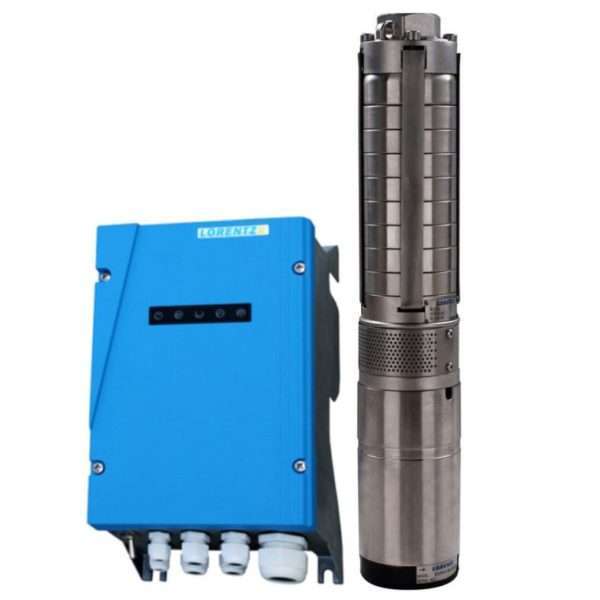

LORENTZ PS600 C-SJ5-8 Submersible Pump System are high quality products designed to supply applications High flow water, livestock watering, and irrigation tank management. They provide a large volume of water economically sustainable and anywhere using solar energy. These highly efficient pumps can achieve flow rates up to 79 m3 / h. Each system consists of a pump, a motor and a controller. This modular concept keeps all the electronics above the surface, enabling easy maintenance, easy access and low cost for the property.
LORENTZ PS600 C-SJ5-8 Submersible Pump System Applications
- Water supply
- Management of the water tank
- chanels
- Drinker won
- Compression systems
- Quick, trouble-free
- excellent functionality
- High reliability and durability
- Short cycle return on investment (ROI)
- Lowest total cost of operation (TCO)
- Dynamic height max. 30 m
- Flow max. 6,5 m³ / h
- Vmp *> 68 V
- Voc max. 150 V
- Control and monitor
- Control inputs for dry run protection, remote control, etc..
- Protected against reverse polarity, overload and temperature execiva
- integrated MPPT
- Low Voltage Disconnect battery operation mode
- Brushless DC motor – maintenance free
- Filled with water
- Without electronic elements on the engine
- Immersion max. 250 m, IP68
- High reliability and durability
- Non-return valve
- Premium Materials
- Optional: dry run protection
| Head | max. 30 m |
| Flow rate | max. 6,5 m³/h |
| Controller | PS2-600 |
| Power | max. 0,70 kW |
| Input voltage | max. 150 V |
| Optimum Vmp** | > 68 V |
| Motor current | max. 13 A |
| Efficiency | max. 98 % |
| Ambient temp. | -40…50 °C |
| Enclosure class | IP68 |
| Pump Unit | PU600 C-SJ5-8 |
| Borehole diameter | min. 4,0 in |
| Water temperature | max. 50 °C |
| Pump End | PE C-SJ5-8 |
| Material | AISI 304/316 |
| Motor | ECDRIVE 600-C |
| Rated Power | 0,7kW |
| Motor Speed | 900… 3300rpm |
| Input Voltage | 45V |
| Submersion | max. 150m |
| Material | AISI 304 |
| Insulation class | F |
| Enclosure Class | IP68 |
